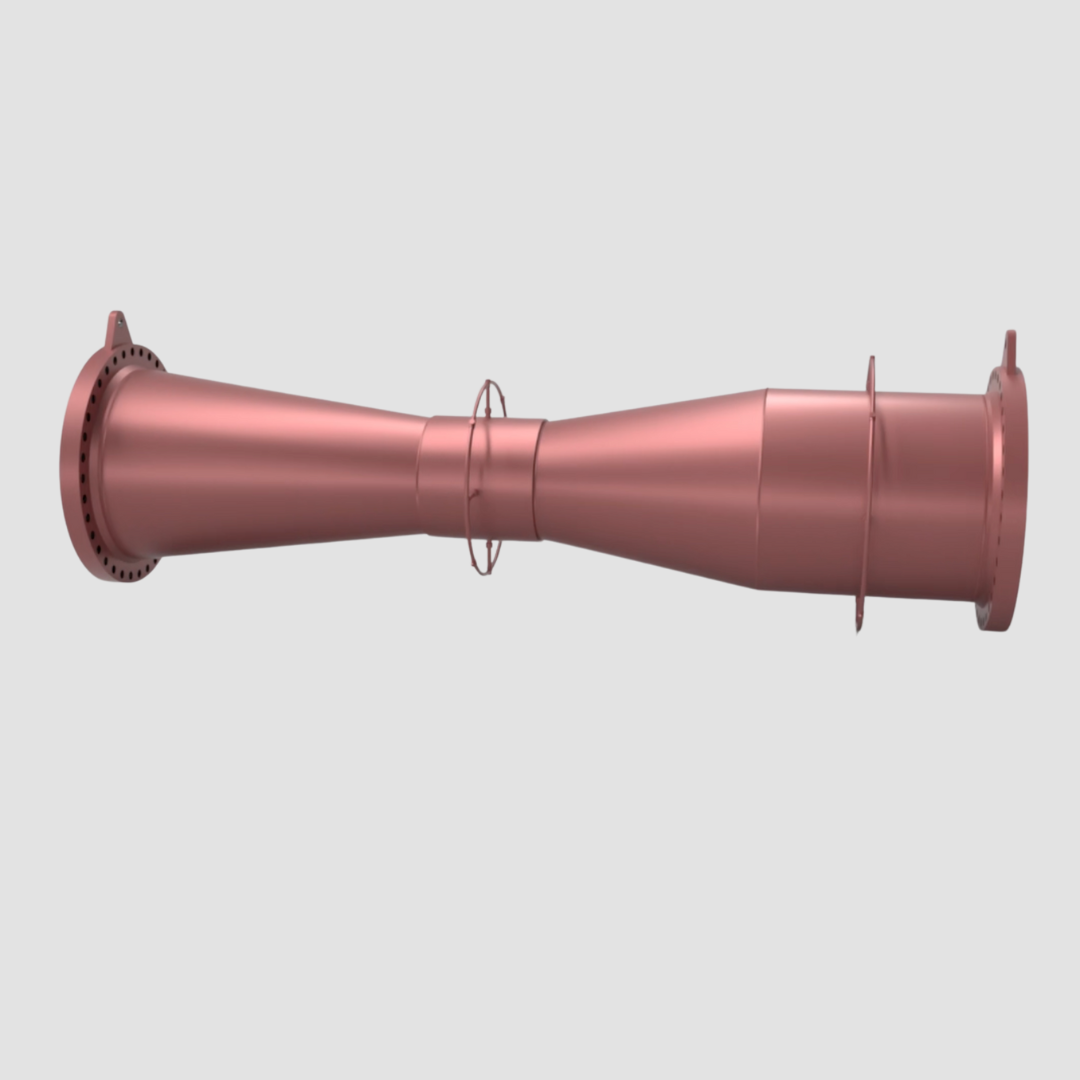

Metaval Fabricated Venturi tubes are constructed from rolled and welded plates for large-diameter and custom flow applications. Ideal for systems requiring lightweight and cost-effective solutions.
Custom sizes up to 1300mm and beyond
Rolled and Welded Design
CS, SS, Monel, Duplex, Hastelloy
50mm to 1300mm (other sizes on request)
Flanged End / Butt Weld
ISO 5167 compliant
150# to 2500#
7°, 15°, or Custom
Hydrostatic Pressure Testing
Dimensional Accuracy Check
Material Traceability
Flow Calibration (optional)
Third Party Inspection (on request)
A105 Carbon Steel
A182 Gr. F304 / F316
Monel 400
Hastelloy C-276
Duplex / Super Duplex (on request)
CE Certified
PED 2014/68/EU
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
