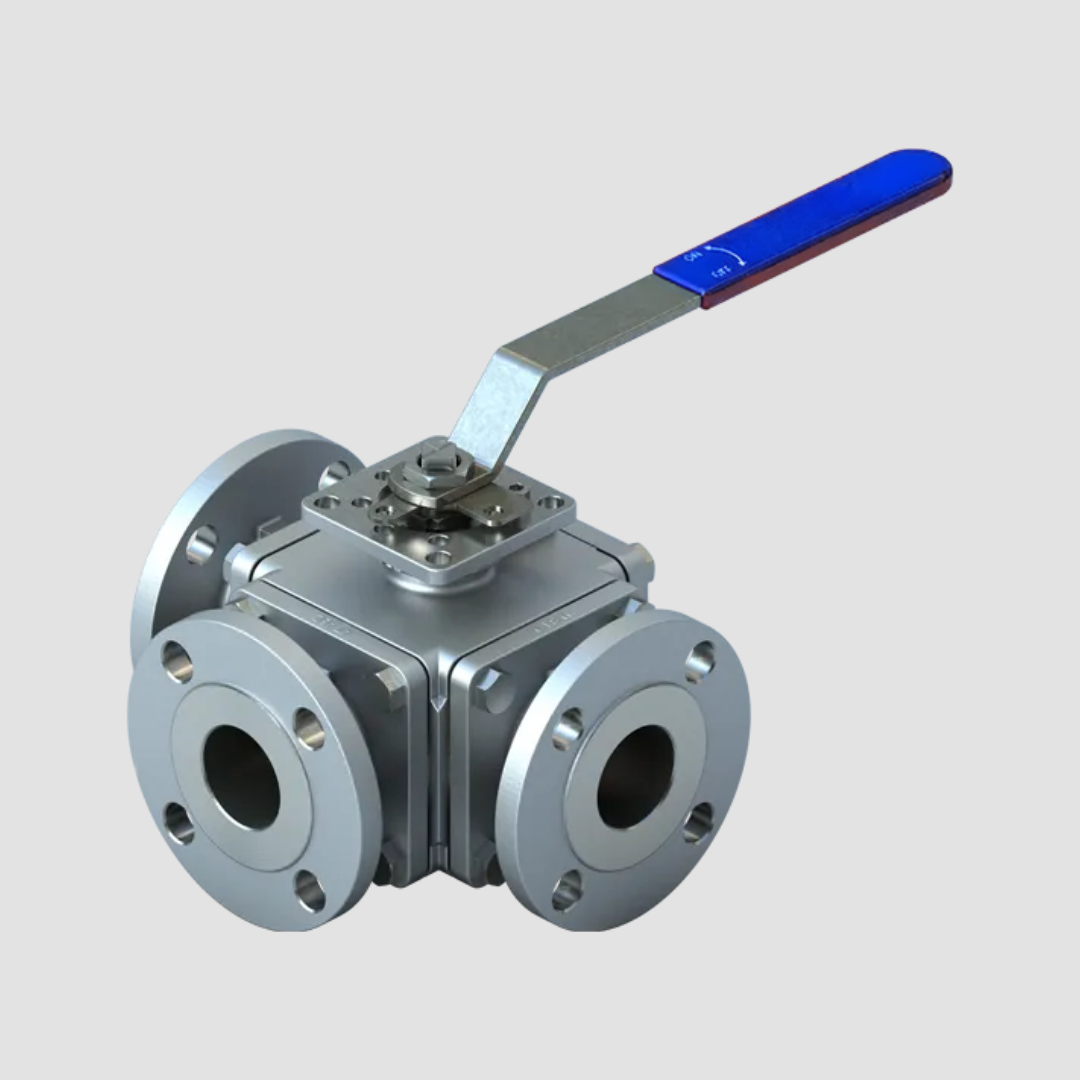

Metaval Multiport Ball Valves are engineered for advanced flow control where multiple inlets and outlets are required within a single compact valve body. Designed for 3, 4, or custom port configurations, these valves simplify piping layouts, reduce installation costs, and improve automation efficiency across a wide range of industries.
1/2” to 48”
150 to 2500
PN 10 to PN 100
1/2” to 48”
Class 150 to 2500
L Port, T Port, X Port, Cross Flow, and Custom Patterns
Up to 250°C (material dependent)
Flanged, Screwed, Socket Weld, Butt Weld, Tri-Clamp
PN 10 to PN 100
Design & Manufacturing: API 6D / API 608
End Connections: ASME B16.5 / B16.47, EN 1092-1, AS 4087, AS2129, BS 5155, B16.25, B16.11
Pressure-Temperature Ratings: ASME B16.34
Testing: API 598, EN 12266-1
Top Mounting: ISO 5211
Body: A105, WCB, LCB, CF8, CF8M, Duplex, Super Duplex, Inconel, Hastelloy
Ball: SS304, SS316, CA15, Overlayed / Hardfaced
Stem: A276 410, A182 F304/F316
Seat: PTFE, RPTFE, PFA, Viton, Nylon, Delrin, Metal-to-Metal
Gland Packing: PTFE, Graphite, Inconel
Gasket: Spiral Wound SS304/316, Graphite, PTFE
Multiple Port Designs: Reduces piping and simplifies flow logic
Full Automation Compatibility
Compact, Space-Saving Design
High Cycle Life
Suitable for Mixing, Diverting, and Isolation
Customized Bore Patterns Available
Hydrostatic and Pneumatic Testing
Helium and Nitrogen Leakage Testing
PMI, RT, UT, MPI, DPT
Hardness, Tensile,
Microstructure, Surface Finish
Dimensional Verification
Spectrometer & Functional Testing
Oxygen Cleaning (if required)
CIP/SIP Systems in Pharma and F&B
Mixing and Diverting Circuits
Utility Skids and Manifolds
Batch Processing Plants
Water Recycling and Bypass Lines
Chemical and Dye Distribution
Water and Wastewater
Clean Liquids
Steam
Solvents
Chemical Slurries
Food-Grade Media
CE Marked
PED 2014/68/EU
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
Fire Safe Design – API 607
Get in touch with our team for additional information on product pricing, technical data, project support and more.
