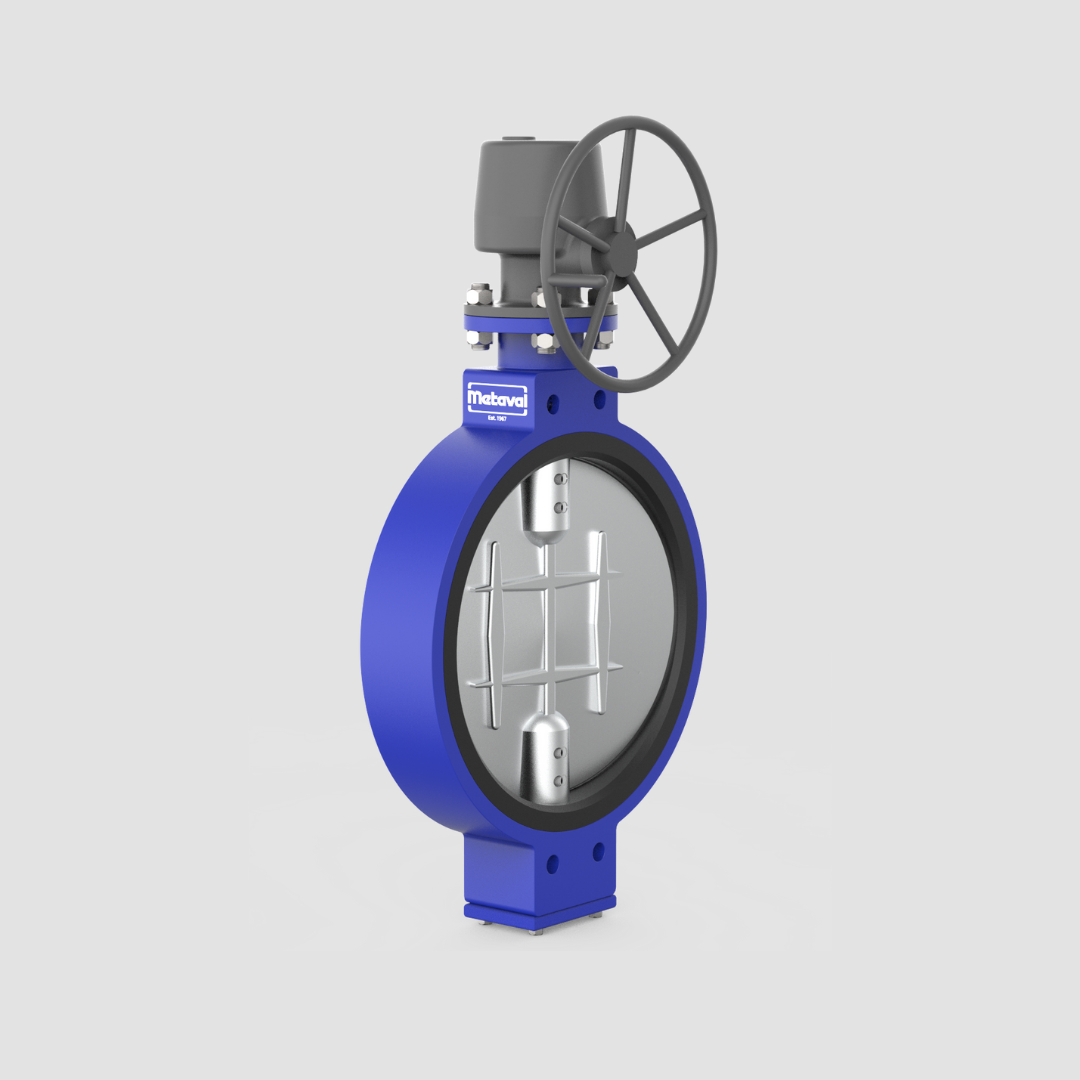

Metaval’s Double Offset Butterfly Valve is designed for higher pressure and temperature applications where long life and improved sealing are required. By offsetting both the stem and the disc, this design reduces seat contact during operation, lowering wear and torque. It’s the ideal balance between performance, economy, and durability, suitable for both soft and metal seated configurations.
2” to 48”
50 to 1200
PN 10 to PN 64
2” to 48”
Class 150 / 300 / 600
DN 15 to 1200
Up to 400°C (depending on materials)
Wafer, Lug, Flanged, Semi-Lug
PN 10 to PN 64
Valve Design: EN 593, API 609, AWWA C504, ISO 5752
Material Standards: EN 16668
Face-to-Face: ISO 5752 / EN 558 / API 609 / ASME B16.10
Top Flange: ISO 5211
Flange Drilling: EN 1092-1, AS 4087, AS2129, ASME B16.5/B16.47, BS 5155
Testing Standards: EN 12266-1, API 598
Body: WCB, CF8, CF8M, CF3M, Ductile Iron, Duplex, Super Duplex, Monel, Inconel
Disc: Stainless Steel, Duplex, Super Duplex, Monel, Inconel
Seat: Soft (EPDM, PTFE, Viton, PFA) or Metal Seated (Hard-faced SS)
Stem: Stainless Steel (410, 304, 316), others on request
Gasket: Spiral Wound SS / Graphite / PTFE
Double Offset Geometry: Minimizes disc-seat contact for lower wear
Soft and Metal Seated Options: Versatile for standard or severe service
Bi-directional Shut-off: Reliable sealing in both flow directions
High-Performance Sealing: Enhanced pressure and temperature resistance
Fire Safe Design: Available as per API 607
Actuation Ready: ISO 5211 top flange for direct actuator mounting
Double Offset Geometry: Minimizes disc-seat contact for lower wear
Soft and Metal Seated
Options: Versatile for standard or severe service
Bi-directional Shut-off: Reliable sealing in both flow directions
High-Performance Sealing: Enhanced pressure and temperature resistance
Fire Safe Design: Available as per API 607
Actuation Ready: ISO 5211 top flange for direct actuator mounting
Oil and Gas
Chemical and Petrochemical Plants
Power Generation
Desalination
Water Transmission and Distribution
Pulp and Paper Industry
Fire Water and Cooling Water Systems
Corrosive Liquids
Steam
Slurries
Industrial Water
Hydrocarbons
Gases and Vapors
CE Certified
Pressure Equipment Directive (PED 2014/68/EU)
ISO 9001:2015 – Quality Management
ISO 14001:2015 – Environmental Management
ISO 45001:2018 – Occupational Health & Safety
Fire Safe Design as per API 607
